Audio-Technica

• Audio-Technica system 9 is a four-channel frequency-agile wireless system designed to provide rock-solid performance Along with easy setup and clear, natural sound quality. Featuring sleek, stackable, contemporary styling, system 9 is available in handheld, head Worn, guitar, lavalier and body-pack configurations. The system offers four compatible user-switchable VHF channels (169.505, 170.245, 171.045, and 171.905 MHz). each system 9 configuration includes the atw-r900 receiver and either a body-pack transmitter or handheld microphone/transmitter. The atw-r900 is a non-diversity, single-channel receiver with advanced dipole antenna design for extended operating range, which improves operation by providing a ground Element in addition to the usual signal Element. The atw-r900 also offers volume control along with AF peak, RF and power indicator lights. Features: easy operation and clear, natural sound quality 4 selectable frequency-coordinated VHF channels balanced XLR and unbalanced 1/4?? output jacks enable use with a wide variety of audio gear reliable performance and durable construction Advanced dipole antenna system for extended operating range specifications: operating frequencies: VHF high band, 169 MHz to 172 MHz modulation Mode: FM maximum deviation: +/-10 kHz dynamic range: >/=90 dB (a-weighted), typical total harmonic distortion: <1% (at 1 kHz, +/-10 kHz deviation) operating range: 200' (60 m) typical open range environment with no interfering signals operating temperature range: 40?° F (4?° C) to 110?° F (43?° C) battery performance may be reduced at very low temperatures frequency response: 80 Hz to 13 kHz

• Unidirectional dynamic element
• 4 selectable VHF channels
• Durable construction
• Offers rock-solid performance
• Runs on two AA batteries

• The Audio-Technica atw-t1001 system 10 digital unpack body-pack transmitter is a digital high-fidelity wireless transmitter designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, this digital transmitter offers easy operation. It also offers an easy-to-read digital ID display. The system 10 wireless transmitter ensures clear Communications by providing 3 levels of diversity assurance: frequency, time and space. Frequency diversity sends the signal on 2 dynamically allocated frequencies for interference-free communication. Time diversity sends the signal in multiple time slots to maximize immunity to Multipath interference. Finally, space diversity uses 2 antennas on the transmitter and receiver (sold separately) to maximize signal integrity. The versatile atw-t1001 unpack Body pack transmitter has both a high-impedance input for instruments and a low-impedance input with bias connection for use with dynamic and electret condenser microphones. Features: digital 24-bit/ 48 kHz wireless operation for high-quality sound and dependable performance 2.4 GHz range - completely FREE from TV interference three levels of diversity assurance: frequency, time and space power/mute/battery indicator shows operation status and lets you know when batteries are low, dead or installed incorrectly permanently-attached transmitter antenna transmitter pairing switch and system ID display for pairing a transmitter with a receiver high-impedance input for instruments and low-impedance input with bias connection for microphones microphone/instrument level control with included screwdriver for adjusting the input level power/mute button allows toggling between muted and unmuted operation via a single touch Audio-Technica microphones and cables are available (sold separately), pre-terminated with a unpack input connector specifications: operating frequency: 2.4 GHz ISM band dynamic range: > 109 dB (a-weighted), typical total harmonic distortion: 7 hours (alkaline) operating temperature range: 32 to 104Deg.F (0 to 40Deg.C) dimensions (W x H x D): 2.76 x 4.21 x 0.98" (70.10 x 106.93 x 24.89mm) weight: without batteries: 3.5oz (99.22G)

• The Audio-Technica ATW-T1002 System 10 Handheld Unidirectional Microphone/Transmitter is a digital high-fidelity wireless transmitter designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, this digital transmitter offers easy operation. It also offers an easy-to-read digital ID display. The System 10 wireless transmitter ensures clear communications by providing 3 levels of diversity assurance: frequency, time and space. Frequency Diversity sends the signal on 2 dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses 2 antennas on the transmitter and receiver (sold separately) to maximize signal integrity. The ATW-T1002 handheld transmitter features a Unidirectional dynamic microphone element and has a Power/Mute switch, as well as an adjustable input level control. Features: Digital 24-bit / 48 kHz wireless operation for high-quality sound and dependable performance 2.4 GHz range - completely free from TV interference Three levels of diversity assurance: frequency, time and space Unidirectional dynamic microphone Power/Mute/Battery indicator shows operation status and lets you know when batteries are low, dead or installed incorrectly Adjustable input level control with included transmitter screwdriver Transmitter pairing switch and system ID display for pairing the transmitter with a receiver Power/Mute button allows toggling between muted and unmuted operation via a single touch Specifications: Operating Frequency: 2.4 GHz ISM band Dynamic Range: > 109 dB (A-weighted), typical Total Harmonic Distortion: 7 hours (alkaline) Operating Temperature: 32 to 104deg.F (0 to 40deg.C) Dimensions (LxDiameter): 10.03 x 1.97" (254.80 x 50.03mm) Weight: Without Batteries: 9.9oz (280.66g)

• Extremely wide 60 MHz UHF Tuning bandwidth for maximum versatility in an increasingly congested RF environment
• Auto squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
• Frequency scan and IR sync functionality for ease of setup

• Rich, natural, condenser-like sound
• Humbucking Coil prevents electromagnetic interference (EMI)
• Hyper cardioid polar pattern improves isolation
• Switchable 100 Hz high-pass filter
• Superior off-axis rejection for maximum gain before feedback

• Designed for broadcast and professional recording, audio-technica??™s BP4025 stereo condenser offers large-diaphragm capsules in an innovative coincident capsule configuration. This allows for a smaller housing while producing an x/Y stereo image with the spatial impact and realism of a live sound field. Ideal for use with professional audio and video equipment, The microphone is fully RoHS-compliant ??“ free from all substances specified in the EU directive on the reduction of hazardous Substances (RoHS). features: large-diaphragm capsules offer pristine sound quality and exceptionally low noise innovative coincident capsule configuration produces accurate stereo image in smaller housing compact, lightweight design is ideal for camera-mount use excellent channel separation phantom power operation??”for use with professional equipment switchable low-frequency roll-off and 10 dB pad includes one balanced Cable (two 3-pin XLRM-type connectors at output) RoHS-compliant ??“ free from all substances specified in the EU directive on the reduction of hazardous Substances (RoHS) specifications: transducer: fixed-charge back plate permanently polarized condenser polar pattern: x/Y stereo frequency response: 20Hz to 17kHz dynamic range (typical): 131dB, 1kHz at max SPL signal-to-noise ratio: 80dB, 1kHz at 1PA maximum input sound level: 145dB SPL, 1kHz at 1% T.H.D., 155dB SPL, with 10 dB pad (nominal) power requirements: 11-52vdc, 7mA typical (both channels total) output Impedance: 170 ohms output Connectors: 5-pin XLR output (5-pin to dual 3-pin XLR cable supplied) switch: flat, roll-off; 10 dB pad (nominal) pad: -10dB low frequency roll-off: 80Hz, 12dB/ octave dimensions (diameter): 7.32x1. 87" (185.92x47. 49mm) Weight: 9.50oz (269.32G)

• Based on models originally developed for use in the broadcast of the Sydney Games in 2000, the BP4027 (14.96" long) and BP4029 (9.29" long) Stereo Shotgun models are engineered for high-end broadcast and production use. Both microphones feature independent line-cardioid and figure-of-eight elements configured in an MS (Mid-Side) arrangement with switch-selectable internal matrixing. These innovative microphones allow sound recordists the choice of selecting a left-right stereo output (wide or narrow) via the microphone??™s internal matrixing system or choosing discrete Mid-Side signals for later manipulation, a flexibility not available from any other manufacturer. A switchable low frequency roll-off filter helps minimize the pickup of unwanted low frequency noise. These phantom-powered models feature a rugged lightweight design and sleek black color scheme, perfect for on-camera use. Features: Designed for broadcasters, videographers and sound recordists Compact, lightweight design is perfect for camera-mount use Independent Line-cardioid and Figure-of-eight condenser elements Switchable low-frequency roll-off Switch selection of non-matrixed M-S mode and two internally-matrixed left/right stereo modes Includes a 0.61 m (24") cable (5-pin XLRF to two standard 3-pin XLRM connectors) RoHS compliant??”free from all substances specified in the EU directive on hazardous substances Specifications: Transducer: Fixed-Charged Back Plate Permanently Polarized Condenser Polar Pattern: Line-Cardioid and Figure-of-Eight Frequency Response: 40Hz - 20kHz Dynamic Range (Typical)Mid: 101dB, Side: 101dB, LR Stereo: 102dB, (All at 1kHz at Maximum SPL) Signal-to-Noise Ratio: Mid: 72dB, (SPL, 1kHz at 1Pa), Side: 68dB, (SPL, 1kHz at 1Pa), LR Stereo: 70dB, (SPL, 1kHz at 1Pa) Maximum Input Sound Level: Mid: 123dB, (1kHz at 1% T.H.D.), Side: 127dB, (1kHz at 1% T.H.D.), LR Stereo: 126dB, (1kHz at 1% T.H.D.) Power Requirements: Phantom Power, 9 - 52VDC Output Impedance: 200 Ohms Output Connectors: XLR-5M Type (from Microphone), 2 XLR-3M Connectors (L+R) from Microphone's Adapter Cable Low Frequency Roll-Off: -12dB/Octave, ( at 80Hz) Dimensions (L x Diameter): 9.29x0.83" (235.96x21.08mm) Weight: 3.60oz (102.05g)

• With an overall length of just 9.17??? and weight of just 3.5 oz, this microphone adds virtually no heft to the end of a fish pole or the top of a minicam. Through the use of an innovative Audio-Technica design, the interference tube of the BP4073 provides a narrow acceptance angle, effective for long-distance pickup. The highly directional mics offer low self-noise and are fully RoHS-compliant ??“ free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS). Features: Designed for use in broadcasting, film/TV production and theater sound reinforcement applications Direct-coupled, balanced output ensures a clean signal even in high-output conditions Innovative acoustic design provides same directivity as mics up to 50% longer Switchable 80 Hz hi-pass filter 151 dB SPL, with 10 dB pad (nominal) Noise: 13 dB SPL Dynamic Range (typical): 128 dB, 1 kHz at Max SPL Signal-to-Noise Ratio: 81 dB, 1 kHz at 1 Pa Phantom power Requirements: 48V DC, 4.8 mA typical Switches: Flat, roll-off; 10 dB pad (nominal) Weight: 99 g (3.5 oz) Dimensions: 233.0 mm (9.17") long, 21.0 mm (0.83") maximum body diameter Output Connector: Integral 3-pin XLRM-type Accessories Furnished: AT8405a stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8144 windscreen; two O-Rings; protective carrying case Audio-Technica Case Style: SG2

• Subminiature omnidirectional condenser capsule offers extremely intelligible, natural vocal reproduction
• Inconspicuous, lightweight headset with capsule diameter of just 2.6 millimeter is ideal for applications requiring minimum visibility
• Ergonomic under-ear design-the flexible, lightweight, contoured loop hooks behind the ear for an ultra-secure, comfortable fit even for those wearing glasses
• Handles high sound pressure levels with ease
• Terminated with locking 3.5 millimeter connector

• Subminiature omnidirectional condenser capsule offers extremely intelligible, natural vocal reproduction
• Inconspicuous, lightweight headset with capsule diameter of just 2.6 millimeter is ideal for applications requiring minimum visibility
• Ergonomic under-ear design-the flexible, lightweight, contoured loop hooks behind the ear for an ultra-secure, comfortable fit even for those wearing glasses
• Handles high sound pressure levels with ease
• Terminated with a cW-style locking 4-pin connector

• Subminiature omnidirectional condenser capsule offers extremely intelligible, natural vocal reproduction
• Inconspicuous, lightweight headset with capsule diameter of just 2.6 millimeter is ideal for applications requiring minimum visibility
• Ergonomic under-ear design-the flexible, lightweight, contoured loop hooks behind the ear for an ultra-secure, comfortable fit even for those wearing glasses
• Handles high sound pressure levels with ease
• Terminated with a cW-style locking 4-pin connector

The black Audio Technica BP899 is a durable lavalier microphone engineered to be low-profile and visually discreet while providing clear, intelligible speech and vocals for performers, presenters, worship leaders, and instructors. The subminiature size is easy to conceal, while the open-diaphragm design produces a clear, natural sound. An acoustically transparent protective mesh shields the capsule from sweat and moisture, providing reliable performance for film/TV work, theater, and professional events.

The BP899 provides a wide 20 Hz to 20 kHz frequency range and this version of the capsule is designed for standard speech and vocals at levels up to 140 dB SPL. The microphone's omnidirectional polar pattern picks up sound from 360° around the capsule, helping to deliver consistent levels, even when the talent turns away from the mic capsule. Frequency caps are supplied to boost the high-end response; the cap also directs sweat and moisture away from the microphone element.

Here is what you get:

• Audio-Technica BP899 Subminiature Omnidirectional Lavalier Microphone with Normal Sensitivity, Hirose cH-Style Connector & XLR/Power Module (Black)
• Audio-Technica AT8545 Power Module CH to XLR
• 2 x Frequency Caps
• Lapel Clip
• 2 x Windscreens
• Case
• Limited 5-Year Warranty

Product Highlights

• For Video/Film, Theater & Presentation
• Omnidirectional for Consistent Levels
• For cH-Style Audio-Technica Transmitters
• Open Diaphragm for Clear & Natural Sound
• Durable, Sweat-Resistant Protective Mesh
• Tiny Size Is Easy to Conceal
• Normal Sensitivity Handles up to 140 dB
• Requires Plug-In or Phantom Power
• Includes Phantom Power Module with XLR
• Includes Windscreen & 360° Lapel Clip

Audio-Technica BP899 Specs

Microphone

Connectivity

Power

Physical

Packaging Info

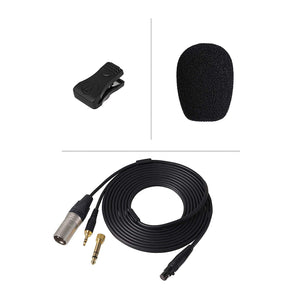

Replacement cable for BPHS1 Broadcast Headset.

3.3 m (10.8') long cable terminating in two output Connectors, one Each for the microphone and headphone: the microphone output is a 3-pin XLRM-type connector.

The headphone output is a 3-conductor ¼" connector

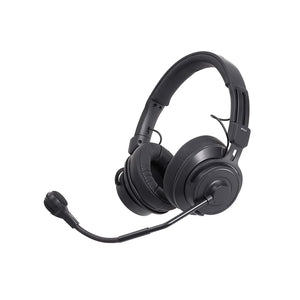

• Mic features polar pattern and frequency response tailored for intelligible vocal reproduction
• Closed-back circumaural ear cups help seal out crowd noise and other background distractions
• Neodymium magnets in microphone & headphones for high output level & detailed sound reproduction
• Cardioid pickup pattern of the dynamic microphone rejects off-axis sounds
• Boom-mounted microphone can be positioned on the left or right side
• Rugged design with user-replaceable cable and ear pads
