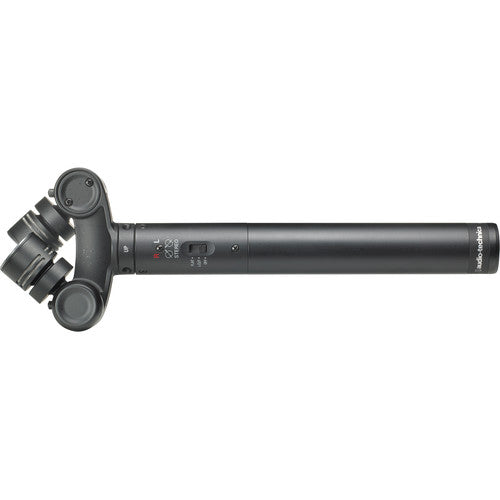

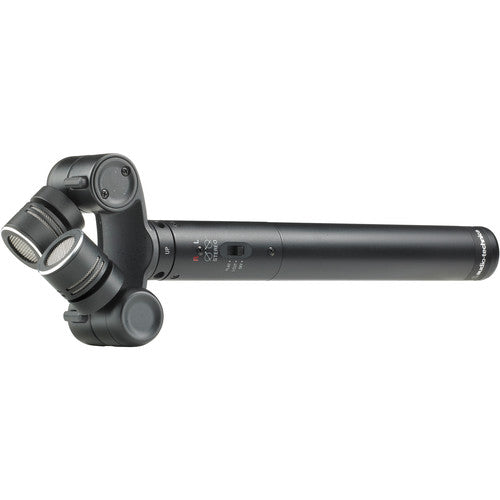

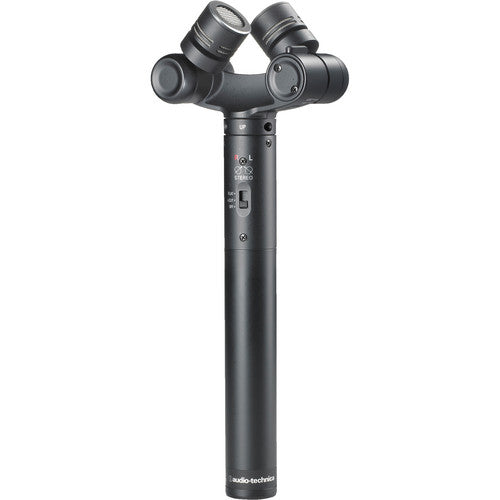

The Audio-Technica AT2022 X/Y Stereo Microphone is designed to capture instruments, ambiance, vocals, and performances in stereo. There are two cardioid swiveling capsules that can fold flat for storage and transportation. Easily position the capsules to allow for narrow or wide stereo operation.
A low-frequency roll-off switch minimizes noise due to proximity effect, ambiance, wind, and more. The AT2022 is battery operated (only) and includes a cable, stand clamp, and windscreen.

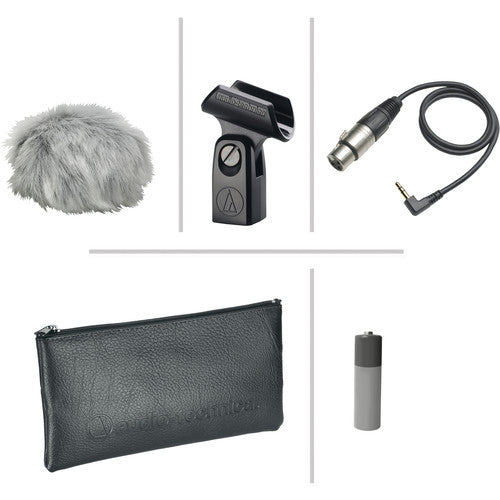

Here is what you get:
- Audio-Technica AT2022 X/Y Stereo Microphone
- AT8405a Stand Clamp for 5/8"-27 Threaded Stands
- XLR to 3.5mm TRS Stereo Microphone Cable (1.64')
- Fuzzy Windscreen
- Battery
- Soft Protective Pouch
- Limited 1-Year Warranty
Product highlights:
- Pivoting X/Y Stereo Capsules
- 90 or 120° Stereo Operation
- Battery Operation
- Switchable Low-frequency Roll-Off
Audio-Technica AT2022 Specs
|
Transducer
|
Fixed-charge back plate, permanently polarized condenser
|
|
Polar Pattern
|
X/Y Stereo
|
|
Frequency Response
|
20Hz - 20kHz
|
|
Dynamic Range (Typical)
|
103dB, 1 kHz at Max SPL
|
|
Signal-to-Noise Ratio
|
75dB, 1kHz at 1 Pa
|
|
Maximum Input Sound Level
|
122 dB SPL, 1 kHz at 1% T.H.D.
|
|
Power Requirements
|
1.5V AA/UM3
WARNING: The AT2022 is designed for battery operation only. Do not attempt to use when phantom power is present. Possible damage to the microphone may result.
BATTERY CURRENT / LIFE 1.2 mA / 500 hours typical (alkaline)
|
|
Output Impedance
|
200 ohms
|
|
Output Connectors
|
Integral 3-pin XLRM-type
|
|
Pad
|
None
|
|
Low Frequency Roll-Off
|
150Hz, 6 dB/octave
|
|
Dimensions
|
7.56" (192.0mm) Length
2.56" (65.0mm) Head Diameter
0.83" (21.0mm) Body Diameter
|
|
Weight
|
9.5 oz (270g)
|
Packaging Info
|
Package Weight
|
1.675 lb
|
|
Box Dimensions (LxWxH)
|
9.8 x 9.7 x 3"
|
