• 11 x Mic Inputs and 16 Line Inputs
• Compression & Inserts on Ch 1-8
• 2-In / 4-Out USB (24-Bit, 192 kHz)
• GigFX Effects Engine (24 FX Presets)
• Main, Control Room, Subgroup Outputs
• 11 Onyx Mic Preamps with 48V Phantom
• 3-Band EQ, Aux Send, FX Send, Pan, Mute
• Level, FX, Sub 1/2, Sub 3/4, Main Faders
• Pro Tools | First and Waveform DAW

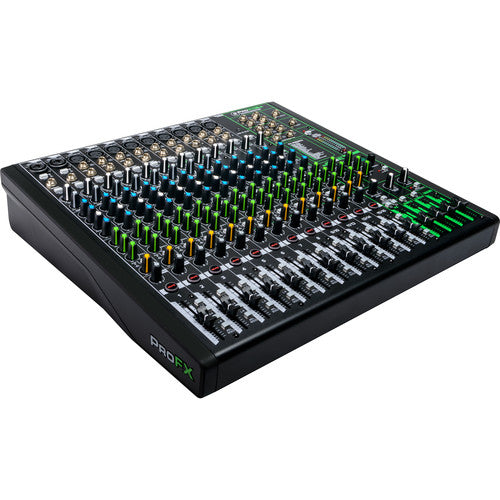

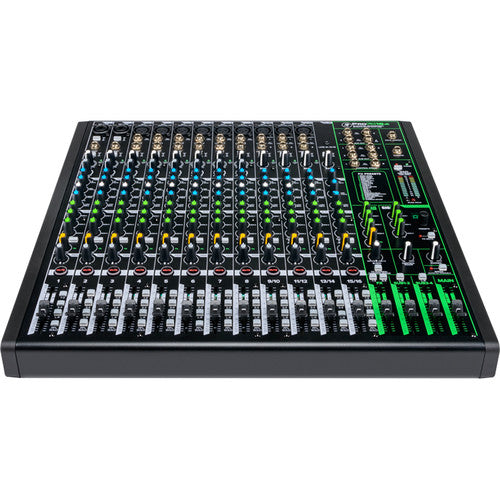

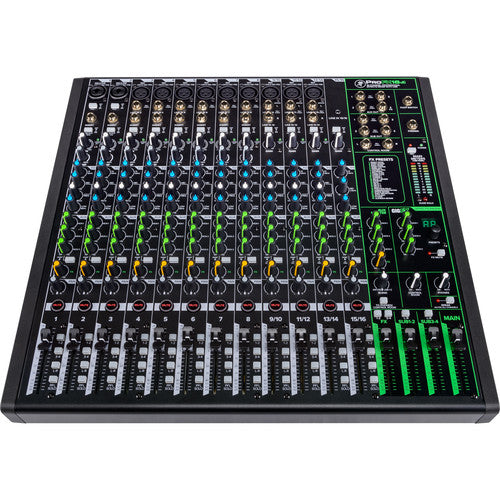

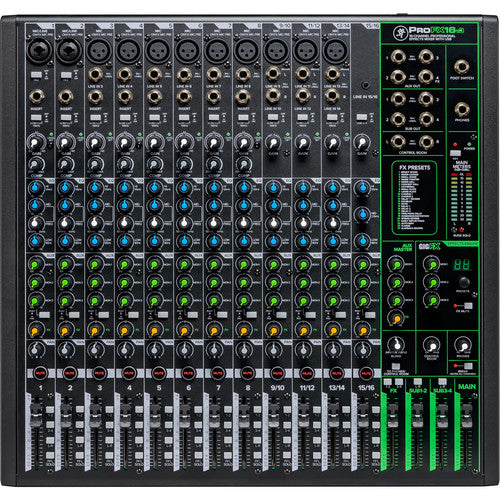

The Mackie ProFX16v3 is a 16-channel mixing console featuring 11 Onyx microphone preamps with 60 dB of headroom and a built-in effects engine with 24 built-in FX, making it well suited for live sound, home recording, and content creators. The integrated 2x4 USB audio interface offers high-quality 24-bit / 192 kHz recording and playback with zero-latency monitoring. Channels 1-2 offer combo XLR-1/4" mic/line connections and a Hi-Z switch (for guitar and bass), while channels 3-11 offer XLR or 1/4" inputs. Channels 1-8 include inserts and single-knob compressors. Channels 9/10, 11/12, and 13/14 offer two 1/4" line inputs each (L and R for stereo), while channel 15/16 uses a 3.5mm stereo input. Channels 1-16 feature gain controls, a 3-band EQ, three aux sends for monitors, a dedicated FX send, pan, mute, and level faders. Engaging channel 15/16's USB 3-4 switch will override the 3.5mm input and enable the USB return from a computer.
